Fireproof glass non-bearing partition

2019-06-21 753

Executive standard:

GA 97-1995《General specification for non-load-bearing partition wall of fireproof glass》;

CNCA-C18-02 :2014《Compulsory Product Certification Implementation Rules Fire Protection Products》;

CCCF-HZFH-02《Implementation Rules for Compulsory Product Certification Fire Protection Products Building Refractory Component Products》;


Test Report:

Technical Parameters and 3C Certificate Number and Inspection Report Number of Hengbao Fireproof Glass Non-Bearing Wall Products

Serial number

Product Name

Model Specification

Fireproof and heat insulation time

CCC Certificate number

Inspection Report

1

Fireproof glass non-load-bearing partition wall

GFBQ-3028-I-1.0

1.00h

2016081806003218

201564239

2

Fireproof glass non-load-bearing partition wall

GFBQ-3030-I-1.0

1.00h

2016081806003213

201564240

3

Fireproof glass non-load-bearing partition wall

GFBQ-3237-I-1.0

1.00h

2016081806006087

201668250

4

Fireproof glass non-load-bearing partition wallGFBQ-3343-I-1.01.00h2016081806006088201668249


Product Advantages:

1. The glass and frame, can satisfy the fire resistance stability, integrity and heat insulation for a certain period of time.

2. It has special functions of fireproof, smoke proof and high temperature blocking;

3. The product is high-grade and transparent.

4. A total of 4 products of Hengbao Company have obtained the national 3C certification nationally, and the oversized non-bearing partition 3200mmX4300mm is the first product at China, which caters to the needs of high quality customers;

5. It is not necessary to add automatic water sprinkler system to select heat-insulating fireproof glass.


Scope of application:

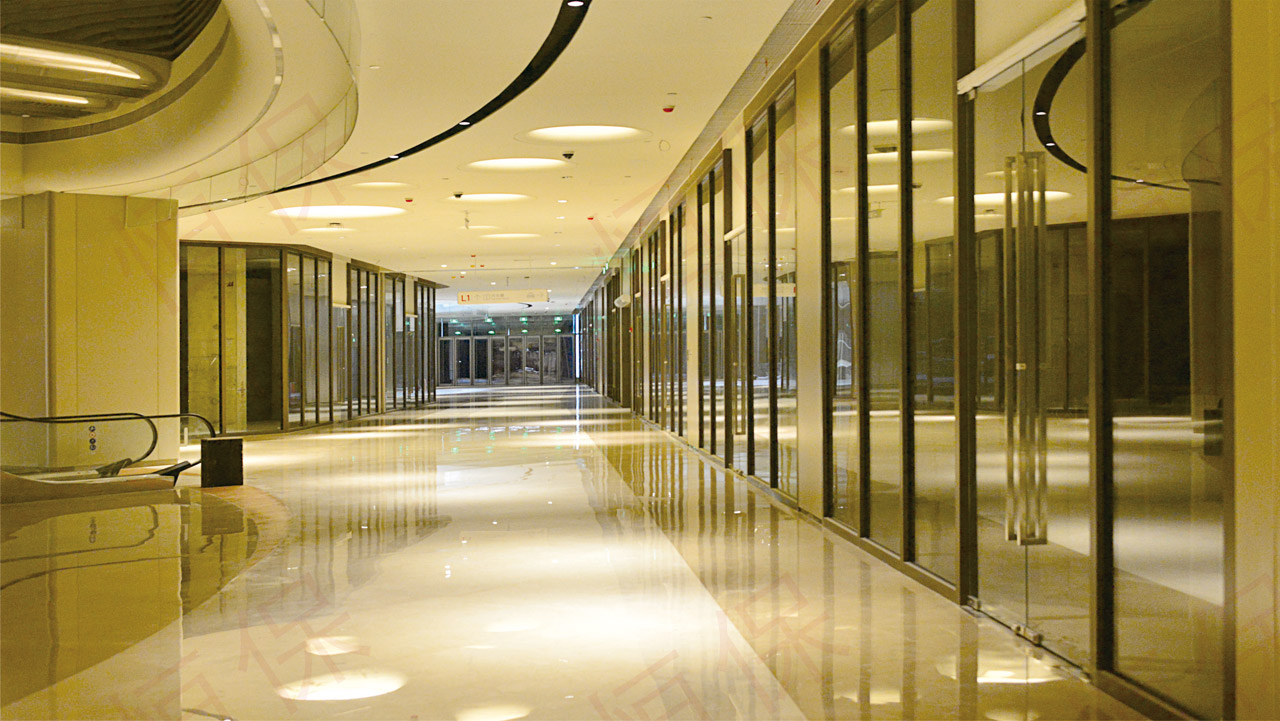

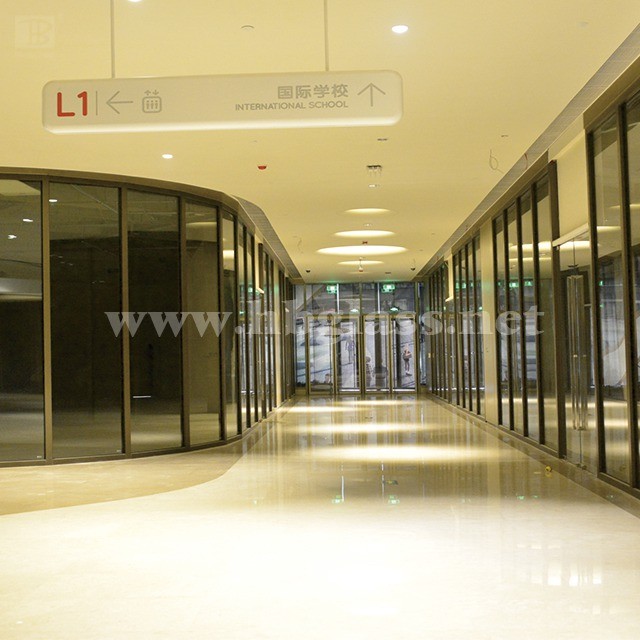

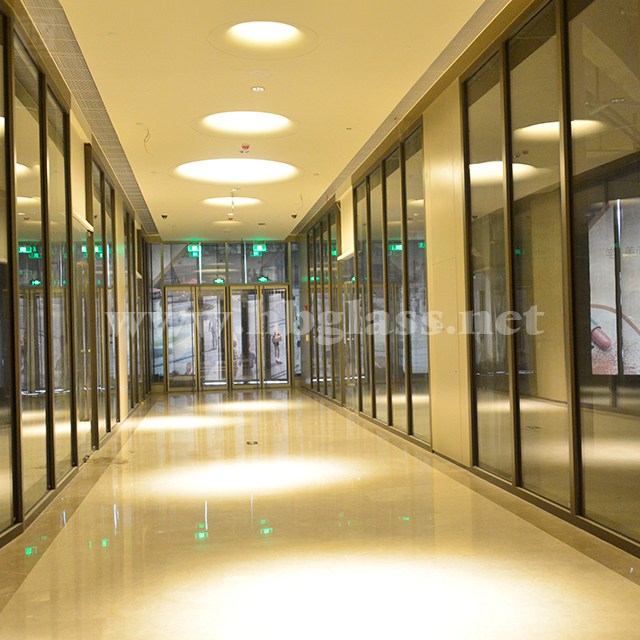

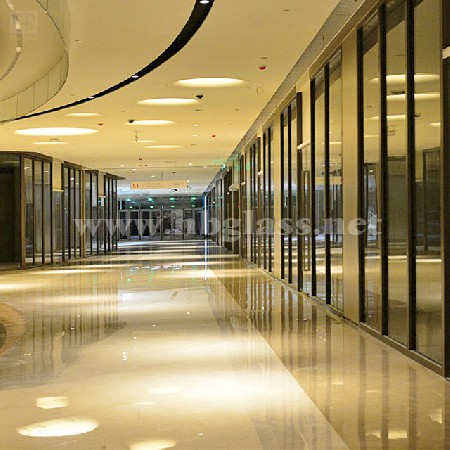

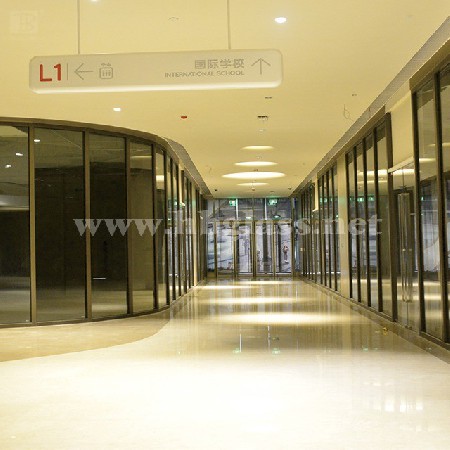

It is used in high-end hotels, theaters, exhibition halls, airports, stadiums, hospitals, libraries, commercial buildings and other public places.

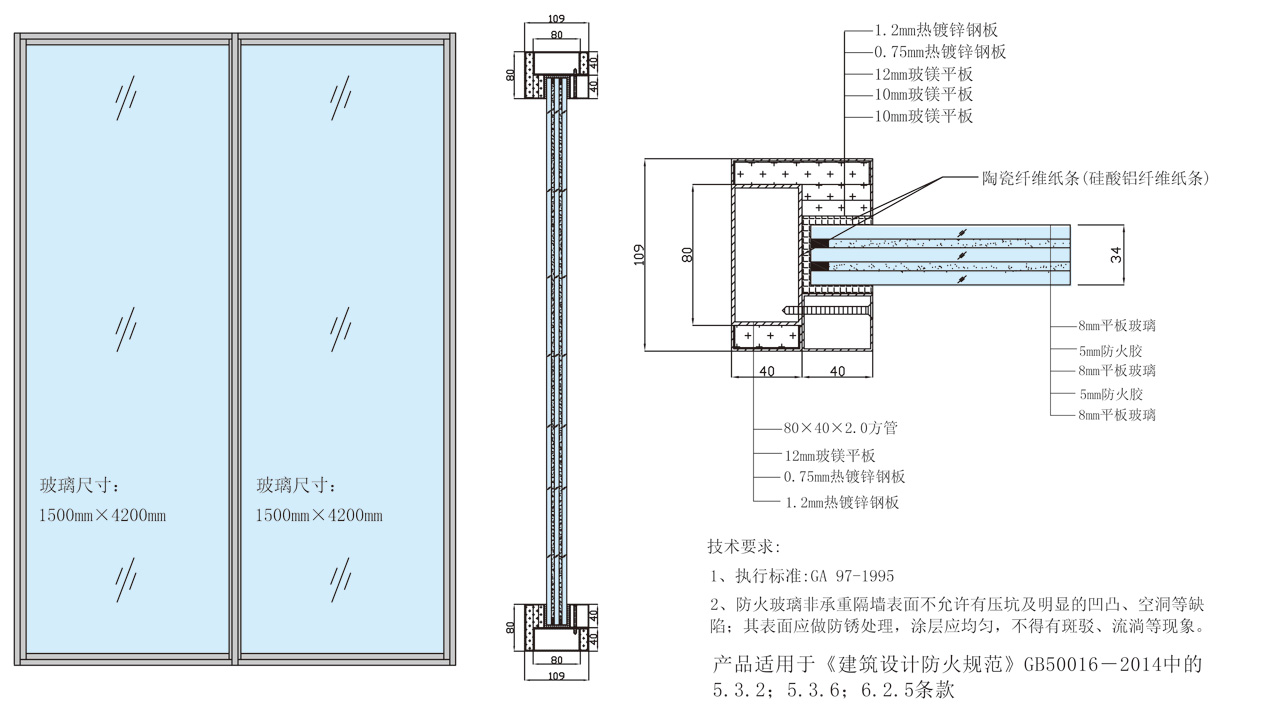

Product Node Diagram:

3200mmX4300mm Super-large and super-high fireproof glass non-load-bearing partition wall防火玻璃防火玻璃
